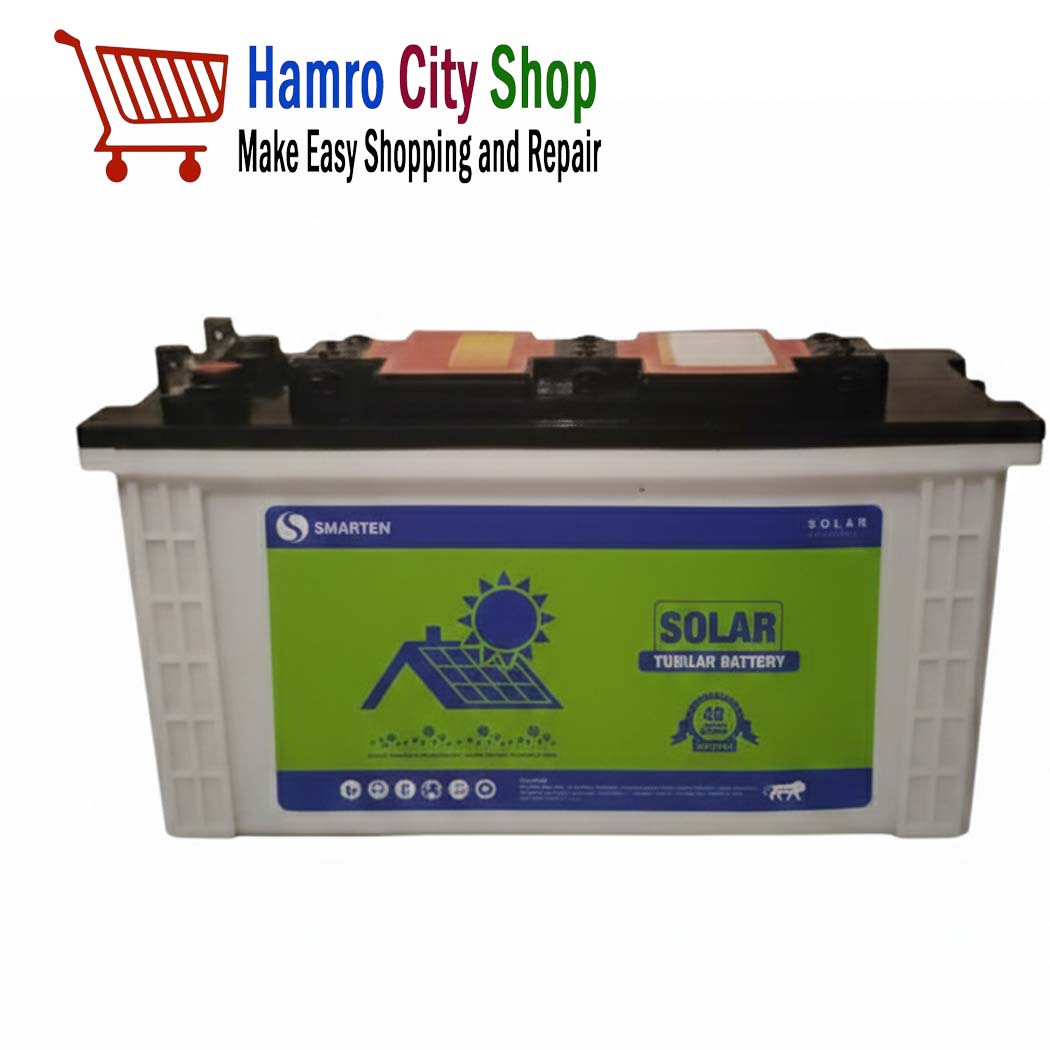

Smarten Saver 100AH solar Tubular battery

Description

Smarten Saver 100AH solar Tubular battery

Here’s a detailed 650+-word specification overview of the Smarten Saver 100Ah Solar Tubular Battery (often listed as the Smarten Saver Series 100Ah 12 V Tubular Battery – model SRTT-1000). This battery is designed primarily for solar power systems and deep-cycle backup applications, offering reliable performance and durability for homes, offices, and industrial use.

Overview: Smarten Saver 100Ah Solar Tubular Battery

The Smarten Saver 100Ah Solar Tubular Battery is a lead-acid, tubular–plate solar-compatible battery engineered for long-term energy storage and frequent cycling. Its design focuses on high reliability, deep discharge capacity, low maintenance, and extended service life, making it suitable for use in solar power setups, UPS systems, telecom installations, and corporate environments.

1. Battery Type and Technology

This battery uses tubular plate technology, which is one of the most robust lead-acid battery types for deep-cycle applications. Tubular plates are designed to endure repetitive charge and discharge cycles — a key requirement in solar energy systems where daily cycling is common.

The battery is often described as incorporating Hi-Power Selenium Technology. This technology enhances durability, reduces water loss, and improves performance by lowering internal resistance and self-discharge rates.

Because it’s solar panel compatible, it can be directly used as the storage unit in off-grid or hybrid solar power systems without needing multiple battery types.

2. Electrical Performance Specifications

Nominal Voltage and Capacity

• Nominal Voltage: 12 V
• Rated Capacity: 100 Ah @ C10 rating (measured over a 10-hour discharge period)

The C10 rating means the battery can deliver 100 A for 10 hours before reaching its cutoff voltage — a standard measure for deep-cycle batteries used in renewable and backup power systems.

Efficiency and Discharge Characteristics

• Ampere-hour Efficiency: ≥ 91.6%
• WH (Watt-hour) Efficiency: > 90%
• Self-discharge: ≤ 3% per month @ 27 °C (typical)

High Ah and WH efficiencies indicate effective energy usage with minimal losses, which is especially important in solar systems where charging may be limited by sunlight availability.

3. Physical Dimensions and Weight

According to manufacturer specifications, the Smarten Saver 100Ah battery has the following approximate physical characteristics:

• Length: 505 mm
• Width: 220 mm
• Height: 245 mm
• Dry Weight: ~30 kg
• Wet (Filled) Weight: ~46 kg

These dimensions and weight reflect a typical tubular lead-acid battery format, designed for stability and safe handling in installations ranging from wall-mounted racks to floor setups.

4. Construction Features and Materials

This battery is built with several design features that enhance its longevity and reliability:

Internal Plates

• Type of Negative Plate: Flat pasted tubular plates (improves cycle life and durability)
• Separator Type: PE (polyethylene) separator for improved electrolyte distribution and reduced internal resistance.

Container and Terminals

• Container Material: PPCP (Polypropylene Copolymer), which is robust, flame-resistant, and chemically stable for battery use.
• Terminal Type: Rust-proof terminal technology reduces corrosion and improves electrical connectivity over long service periods.

Special Features

• Leakproof construction — reduces the risk of electrolyte spills and maintenance issues.
• Low self-discharge – helps the battery hold charge well during storage.
• High discharge capacity – suitable for running appliances during prolonged power outages.

5. Operating Environment & Storage

While specific temperature ranges aren’t always published in consumer marketing materials, lead-acid batteries like this one generally operate in a wide range of environmental conditions. The manufacturer indicates compatibility with temperatures from approximately -20 °C to +60 °C, which means the battery can be used in moderate outdoor conditions with proper shelter

Additionally, the design allows for a maximum recommended storage period of up to around 60 days without charging at room temperature (27 °C), which is useful if the battery isn’t immediately installed after purchase.

6. Warranty and Service

The Smarten Saver 100Ah Solar Tubular Battery typically comes with a 60-month replacement warranty from the manufacturer. This long warranty period indicates confidence in the product’s durability and is a strong selling point for customers investing in long-term solar energy storage.

7. Typical Applications

This battery is versatile and suitable for a wide range of applications, including:

• Home Solar Power Systems – stores energy generated during the day.
• Off-Grid Solar Installations – for remote homes, farewells, and cabins.
• Online UPS and Inverter Backup – provides power during grid outages.
• Telecommunications Equipment – supports telecom sites requiring reliable backup power.
• Corporate and Industrial Power Backup – used in offices, IT parks, and small industrial setups.

Conclusion

The Smarten Saver 100Ah Solar Tubular Battery is a robust and reliable energy storage solution designed for solar compatibility, deep cycling, and long life. Its tubular plate design, high efficiencies, durable construction, and extensive warranty make it a strong choice for residential solar systems, backup power needs, and commercial applications where deep discharge performance and reliability over many cycles are essential. (
