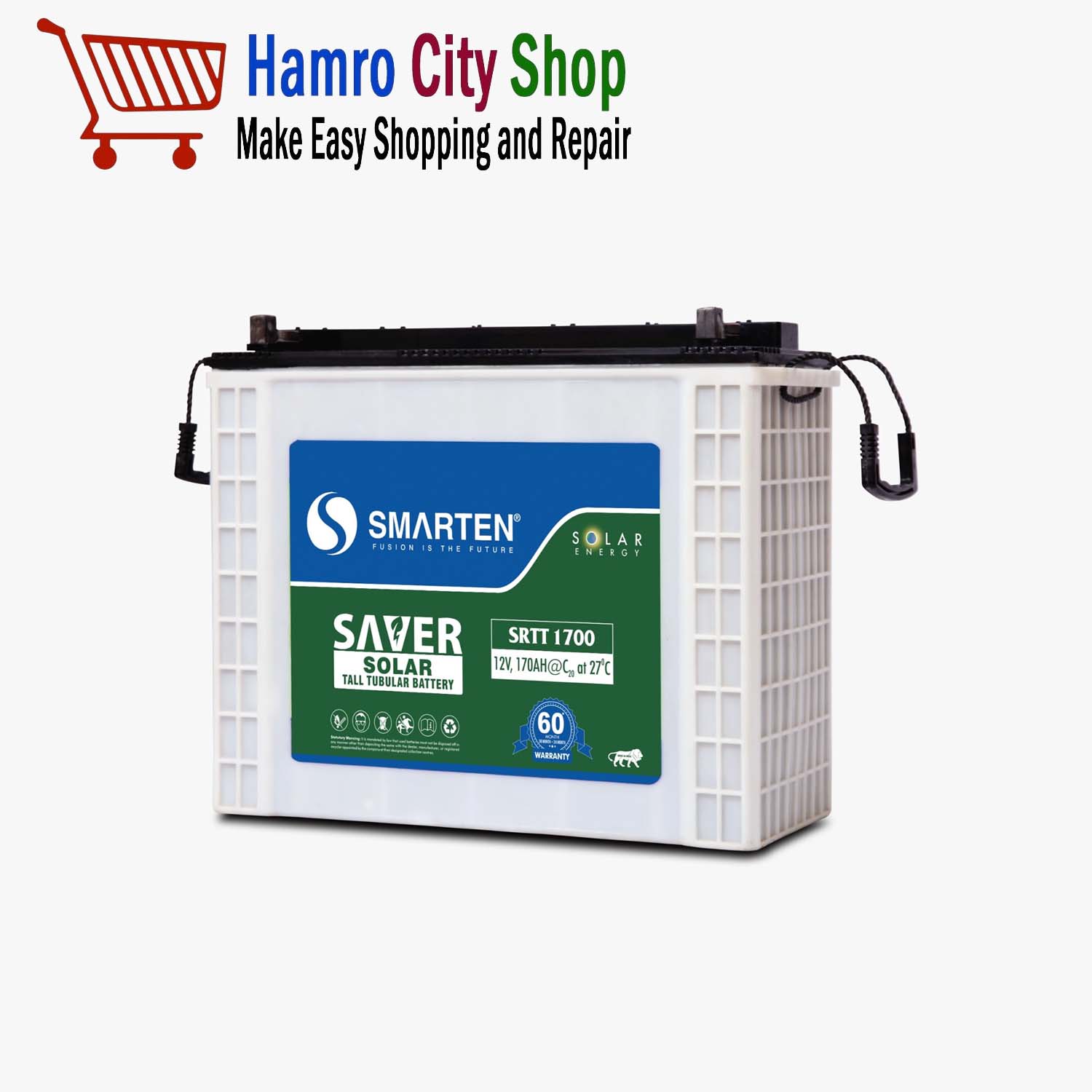

Smarten Saver 170 AH Lead Acide Battery

The Smarten Saver 170 AH is a high-performance Tall Tubular Lead-Acid battery specifically engineered for solar energy storage and heavy-duty home inverter systems.¹ Designed by Smarten Power Systems, it belongs to the “Saver” series, which focuses on high charge acceptance and durability in regions facing long and frequent power outages.²

Below are the detailed technical specifications and features for the Smarten Saver 170 AH (Model: SRTT 1700).

1. Electrical & Performance Specifications

The 170 AH rating is calculated based on the C10 rating, which is the gold standard for solar batteries, as it reflects the battery’s efficiency over a 10-hour discharge period.

• Nominal Voltage: 12V DC.

• Rated Capacity (C10): 170 AH @ 27°C.³



• Total Energy Capacity: ~2,040 Watt-hours (2.04 kWh).

• Charging Current:

  • Recommended: 15A ± 2A.

  • Maximum: Up to 18A (depending on the inverter/charger setting).

• Self-Discharge Rate: Extremely low, less than 3% per month due to Hi-Power Selenium technology.

• Efficiency: * Ampere-Hour Efficiency: > 90%

  • Watt-Hour Efficiency: > 80%

2. Advanced Technologies

The Smarten Saver stands out due to specific manufacturing technologies that increase its lifespan and performance:⁴

• Hi-Power Selenium Grid Technology: It uses a Lead-Selenium alloy instead of standard Lead-Antimony. This significantly reduces water loss (evaporation) and internal grid corrosion, making the battery almost “self-sustainable” and low-maintenance.⁵



• JTB (Jumbo Tubular Battery) Technology: The positive plates are designed in a tubular shape, which provides a larger surface area for chemical reactions. This allows the battery to handle high surge currents (like when a fridge or motor starts) without damage.⁶



• Deep Discharge Recovery: Many lead-acid batteries die if they reach 0% charge. The Saver series is a “Programmable Battery” equipped to recover even from a zero-volt state using independent chargers.

3. Physical & Build Quality

The battery is housed in a “Tall Tubular” container, which is superior for heat dissipation and electrolyte volume.

• Container Material: High-impact Polypropylene Co-Polymer (PPCP), which is leak-proof and rugged.

• Dimensions (L x W x H): Approximately 505 mm x 193 mm x 412 mm.

• Weight:

  • Dry Weight: ~42 kg.

  • Wet Weight (with Acid): ~60 kg to 62 kg.

• Maintenance Features: 6 Float Level Indicators (vent plugs) are included to allow users to monitor distilled water levels at a glance.⁷



4. Charging & Operating Parameters

To ensure the battery lasts its full intended life (5–7 years), the following settings should be used on your inverter/PCU:

5. Warranty & Service

• Warranty: 60 Months (36 Months Full Replacement + 24 Months Pro-rata).

• Solar Compatibility: Fully compatible with PWM and MPPT Solar Charge Controllers.

6. Estimated Backup Performance

Backup time depends on the total load (Watts) connected to the inverter. Below is a guide for a single 170 AH battery:

• 200W Load (e.g., 4 LED bulbs + 2 Fans + 1 TV): ~7.5 to 8.5 Hours

• 400W Load (e.g., 6 Bulbs + 4 Fans + 1 PC + 1 TV): ~3.5 to 4.5 Hours

• 800W Load (High load/Emergency): ~1.5 to 2 Hours

Maintenance Tip: Always use distilled water for topping up.⁸ Never use tap water or mineral water, as the minerals will cause internal short circuits and void your warranty.



Smarten Power Systems is a leading Indian renewable energy company that has rapidly become a household name in the power backup and solar industry. Established in 2014, the company is headquartered in Gurugram, Haryana, and is recognized for its innovation in “smart” power solutions.

Below is a detailed overview of the company’s history, core philosophy, and global footprint.

1. Company Profile & History

Smarten was founded by a team of industry veterans—Rajnish Sharma (CEO), Ravi Dutt, Arun Bhardwaj, and Tirath Khaira. With over 20 years of individual experience in the power sector, the founders launched Smarten with the goal of creating more efficient, user-friendly power backup systems than what was currently available in the market.

• Established: 2014

• Headquarters: Gurugram, India

• Motto: “Fusion is the Future” (Inspired by the nuclear fusion that powers the Sun).

• Status: Publicly listed (NSE: SMARTEN) as of 2025/2026.
